      Toggle Display of OPC Acquisition Performance Data

The OPC Data Listing View shows always the following data:
  • OPC Data Id: the Identifier (Id) of the record in the Genesis OPC Explorer 3.1 database.
  • OPC Data Acquisition Time: the Date and Time of actual OPC Data Acquisition
    The format is always the same: YYYY/MM/DD HH:MM:SS.mmm
  • Acquisition Rate: the actual acquisition rate, that is the time between current and last acquisition
    In normal circumstances, this figure should be equal or near to the minimal acquisition rate
  • Total Acq. Gap: the gap between the calculated time and the actual time for OPC Data acquisition
    Calculated Time is obtained by multiplying the record number by the acquisition time from the OPC Data Acquisition Start
  • Tags Value: the OPC values (according to the Project Setup)

By default, the columns 'Acquisition Rate' and 'Total Acq. gap' are displayed on screen

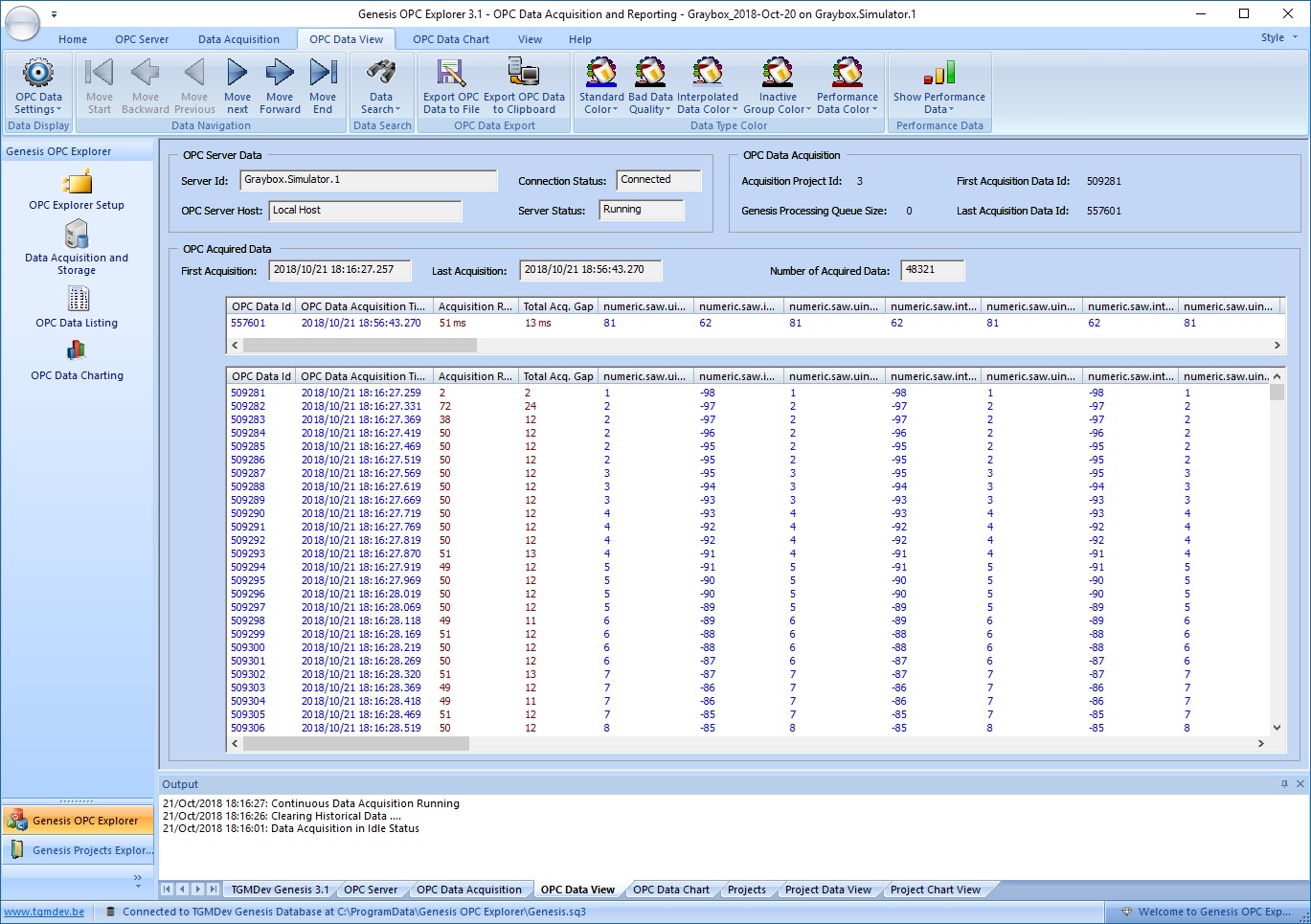

OPC Data Listing View with Performance Data

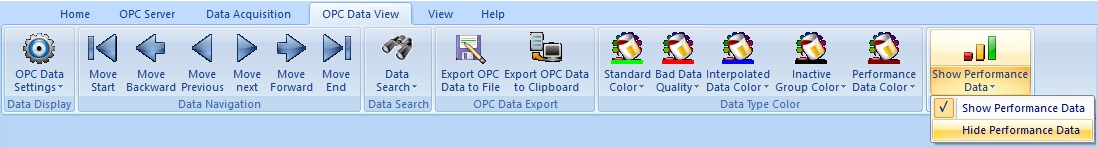

  • Click on the Button 'Show Performance Data' in the Ribbon Tab 'OPC Server' to Open the associated Menu



  • Select the menu item 'Hide Performance Data'

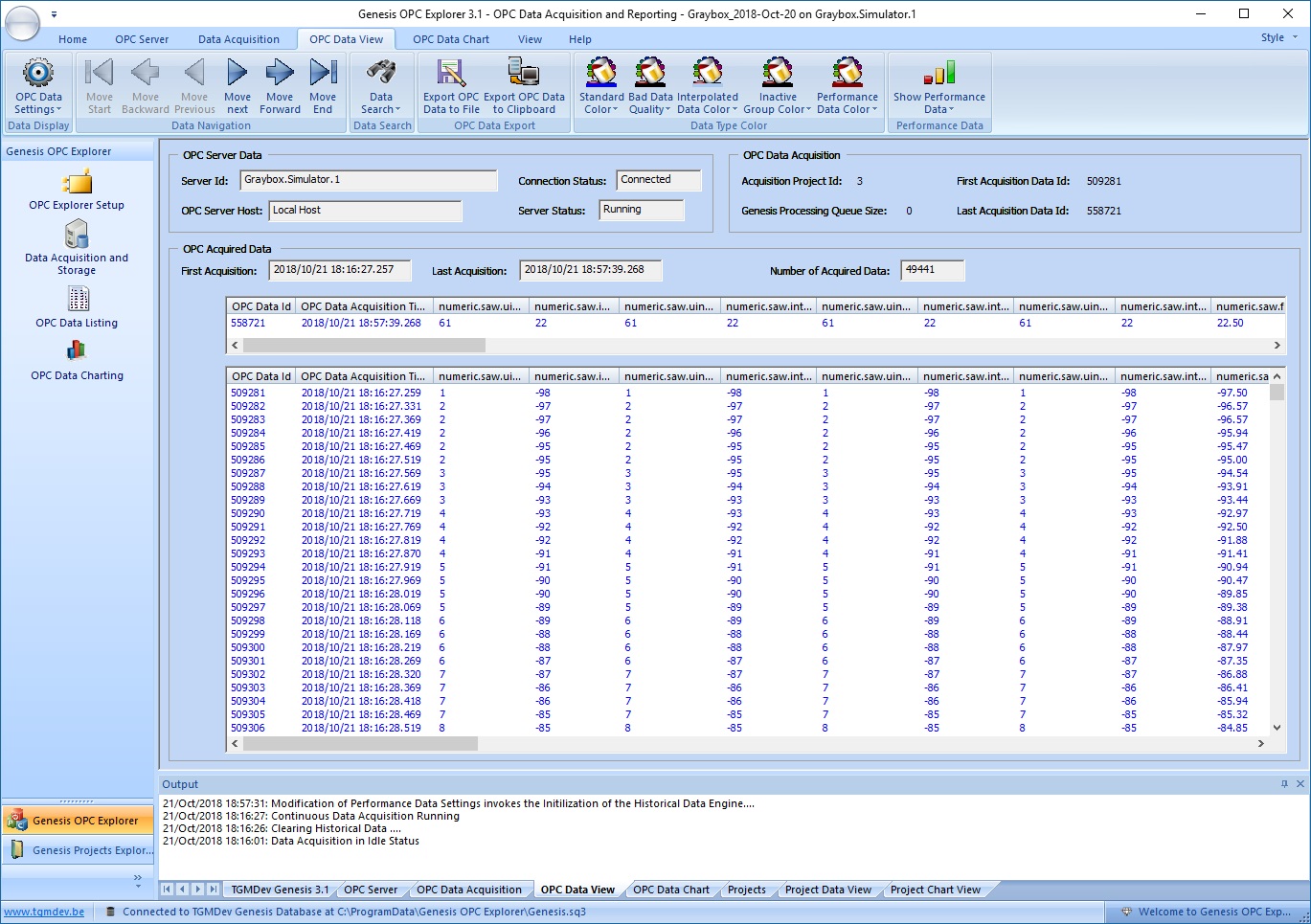

OPC Data Listing View with Performance Data Hidden



There is Bug in Genesis OPC Explorer 3.0 !!!
This functionnality is NOT available. This is corrected in Genesis OPC Explorer 3.1.


Please Download here the latest release of Genesis OPC Explorer
